INCOM RC Sports

Free to use,
millisecond-accurate timing

Our track has been running for over a decade — this is the timing software we built for ourselves, now shared with everyone. Full features, free forever, quick to operate in Chinese. One transponder per car: laps the instant you cross the line, live ranking, charts and voice on one screen — and it all runs on your local network, no internet needed.

Download free See it in action

Windows 10 / 11 (64-bit) · about 120 MB · Supports MYLAPS RC4 and EasyLAP EZL01

Windows 10 / 11 (64-bit)
iPhone / iPad: iOS app coming soon, viewable in a browser today
Android phone / tablet / TV: open the host’s address in a browser; the TV app is not available in this version

INCOM RC Sports · Live Timing MYLAPS RC4 EasyLAP EZL01

Practice mode 01:53 7Drivers 159Total laps Voice 11.602

Pos Driver Laps Lap Time Class Fastest Lap Top 5 Top 10 Top 15 Best 3 Laps Consistency Average

1Driver 01246.2540Pro 13.56.23406.30106.38206.425018.96092.4%6.4958

2Driver 02246.3120Pro 13.56.28606.34806.41106.448019.24091.2%6.5667

3Driver 03236.3780Pro 13.56.34106.40206.46006.502019.48090.1%6.6043

4Driver 04236.4250Pro 13.56.39806.45106.51206.548019.76089.4%6.6739

5Driver 05226.5110Pro 13.56.47206.52306.58106.620020.02088.6%6.7364

6Driver 07226.5840Pro 13.56.53106.58906.64206.678020.31087.9%6.8364

7Driver 06216.7020Pro 13.56.61806.67206.72806.764020.64087.1%6.9210

Fastest lap — —

Leader — — laps

Second place — measured on fastest laps

Lap streak — laps longest run within 1.2x the driver’s fastest lap

Session average — all drivers · 7

Lap history: one cell per lap, coloured by pace

Unlimited cars

Cars are identified by transponder, so there are no lanes to assign and no cap on how many run at once. The MYLAPS RC4 and EasyLAP EZL01 decoders can both be connected at once, so cars sharing the track never interfere with each other.

See it all in real time

Laps, lap times, fastest lap, Top 5 / Top 10, consistency and more: 11 columns that refresh on every lap, with position changes visible the moment they happen. Lap-time charts, training heatmaps and driver comparisons make that progress visible.

Works offline

Timing, ranking, statistics and voice announcements all run on the timing host itself, so a venue with no network still races normally. The weather display is an optional online feature that can stay switched off; the cloud archive is still in development and is not enabled in this version.

Live timing

Every lap, the second it happens

The moment a transponder crosses the line, lap time, position and statistics refresh together. The table below is a UI demo: a script pushes data at a realistic race pace, and positions swap as smoothly as they do in a real race.

Live timing Racing 08:07

Ranking mode: fastest lap Demo data · in real use the values come from the decoder

Fastest lap, recalculated on the spot

Laps are timed as they are counted, and the fastest lap is recalculated every valid lap. When it improves, that cell lights up.
Positions that actually move

Ranking is by fastest lap. When someone sets a quicker time, their row slides up and the order settles in front of you.
Average and gap follow along

Average lap time and laps behind update with every crossing, so you can see at a glance who is catching whom.

Training analysis

Track your progress, lap by lap

Sessions save automatically, so you can review lap-time trends, distribution and the ten fastest laps at any time. Valid laps are judged on a 5–20 s window, so bad data never skews the statistics.

Analysis screen: lap-time distribution bars, peak-hours curve, multi-driver progress trend lines and the ten fastest laps. — Analysis page: lap-time distribution, peak hours, driver progress trend and the ten fastest laps

One record per session

Sessions are stored per run and can be searched and filtered by date and class. Each one shows total laps, fastest lap, average, Top 5, the best three consecutive laps and consistency, with every lap listed and marked valid or invalid.

One profile per driver

Drivers can have an avatar, class, category and chassis brand, plus their own pronunciation for the announcements, and one driver can carry several transponder IDs. Progress is summarised week by week, so you can see at a glance whether the practice is paying off.

Broadcast & TV Not available in this version

The same data, on the big screen and on stream

The timing host also serves broadcast graphics and a leaderboard page: point your streaming software at one address and you are done. The background is transparent, so it overlays the camera feed directly. No green screen needed.

Broadcast graphics · 1080p landscape The info panel overlays the video feed. This is what it looks like on a live stream.

Race:10:00 RACING

Lap:8

Elapsed1:53

Remaining8:07

LEADER

1 Driver 02 Lap 8 11.727

FASTEST LAP

Driver 02 Lap 7 11.602

LEADERBOARD

#NameLapsLast LapGap

1Driver 02811.727—

2Driver 04811.852+0.125

3Driver 01712.359+1L

4Driver 03712.578+1L

5Driver 06713.278+1L

6Driver 05713.716+1L

02:28:40

INCOM RC Sports · Live Timing Racing 01:53

Pos Driver Laps Fastest Lap Average Top 5

1Driver 01246.23406.49586.3010

2Driver 02246.28606.56676.3480

3Driver 03236.34106.60436.4020

4Driver 04236.39806.67396.4510

5Driver 05226.47206.73646.5230

6Driver 07226.53106.83646.5890

7Driver 06216.61806.92106.6720

Installs right on the TV or the TV box

Not available in this version

The Android TV app goes straight onto the TV or the TV box. No HDMI cable from the timing host, and no second computer to drive the screen. It pulls the live standings over your local network.

The data comes from the timing host, where the decoders are connected; the TV only needs to be on the same LAN and needs no internet. Once it opens, you will download the APK from this site, copy it to a USB drive and install it on the TV.

Android TV
Android 10 or newer (Android 14 boxes recommended).
Install & reconnect
Install from a USB drive or over ADB; press Back on the remote to re-enter the host IP.
Demo mode
Offline demo data runs without a host, handy for customer demos.

The TV app is not available in this version; it will ship in a later release.

One address into your streaming software
Add a browser source in OBS or similar software and enter http://<timing-host-ip>:4000/overlay/. Nothing to configure inside the page.
Transparent background, no green screen
Transparency is on by default, so it overlays camera footage straight away. Its styling ships with the page, so it will not go blank at a venue with no internet.

TV leaderboard
Install one app on a TV box to put live standings up in the venue, or just open the leaderboard page in a browser.
Any device on the LAN
The timing host serves several clients at once: phones, tablets and camera positions all see the same live data in a browser.

Language & voice

Switch the interface language, hear your lap times

The interface and the voice announcements cover English, Chinese and Japanese, so you do not have to watch the screen to know your time. The announcement language can be changed on its own, or muted.

Three-language interface
Menus, tables, statistics and buttons follow the language you pick, so coaches and drivers can read the same race in their own language.
Announcements across the whole race
Lap times are spoken as they happen, a dedicated chime marks a new fastest lap, and the start countdown, remaining time, final lap and winner are announced too.

Need another language? Contact us to have the interface text and spoken phrases built for you.

Voice announcements Three languages, or muted

English 中文日本語

Lap time called out11.602
New fastest lapChime
Start countdown5-4-3-2-1
Time remaining30 / 20 / 10s
When time runs outFinal lap
Finish & winnerWinner {name}

Features

The things a practice track actually needs

Voice announcements

English, Chinese and Japanese voices. Lap times are called out as they happen, a chime marks a new fastest lap, and cues cover the start countdown and the final 30 / 20 / 10 seconds.

Quick race

Start a 3 / 5 / 8-minute race in one click. A 5-4-3-2-1 start signal sends the field off, the final lap is announced when time runs out, and the winner is declared as the standings freeze.

Training heatmap

Review training load by day, week or cumulative: a 52-week grid makes attendance and lap counts obvious at a glance.

Lap-time heat strip

Every lap in a stint is colour-coded by pace, so the laps where you dropped off, and the ones that set a new best, stand out at a glance.

Driver comparison

Overlay the lap-time curves of up to four drivers at once to compare before and after practice, or a teammate against a rival.

Export & reports

Export lap details, a statistics summary or a full report to CSV, and print a practice report to take away.

Automatic stint splitting

A car that leaves the track for more than 60 seconds starts a new stint, with fastest lap and Top 5 reset per stint, so sharing the track never muddles the numbers.

On-the-spot registration

An unregistered transponder opens a quick sign-up dialog the moment it crosses the line: type a name and the car carries on, with no need to stop the session.

Hardware

Connects to the decoder you already own

Both mainstream decoders are supported: MYLAPS RC4 over the network and EasyLAP EZL01 over USB. You can use the hardware your track already has. Timing resolution is 1 millisecond and lap times are shown to 4 decimal places.

MYLAPS RC4Network

Connects directly over the local network using the P3 protocol, well suited to a permanent venue.

Connection: TCP / Ethernet
Protocol: P3 (MYLAPS timing service)
Default address: <decoder-ip>:<port>
Where to set it: Enter IP and port on the Decoder page

EasyLAP EZL01USB

Connects straight to the host through a USB HID bridge: plug in and go, ideal for temporary tracks and travel.

Connection: USB HID (CP2110 bridge)
Serial params: 38400 / 8N1
Resolution: 1 millisecond
Where to set it: Click “Scan” on the Decoder page

Precision: the decoder reports timing in 1-millisecond units, and lap times are displayed to 4 decimal places (0.001 s), matching IFMAR convention. Laps are filtered to between 3 and 300 seconds, and 5–20 s counts as a valid lap.

MYLAPS, EasyLAP and their product names are trademarks or registered trademarks of their respective owners, used here only to indicate compatibility.

Track diagram of a custom setup: ① the start/finish line, ② a second timing point (sector or joker line)

Two hardware families, one timing host

The timing host accepts both decoders: MYLAPS RC4 over the network and EasyLAP EZL01 over USB. The Decoder page gives each decoder its own panel, connection status and packet/signal statistics, so you can use whichever hardware your track already has.

Using a second decoder as a second timing point (sector splits, or verifying a joker line) is custom development rather than a standard feature. it has to be scoped for your layout, your hardware and how the results should be presented.

Sector and joker-line setups are quoted per track. Send us a sketch of your track and we will scope it with you.

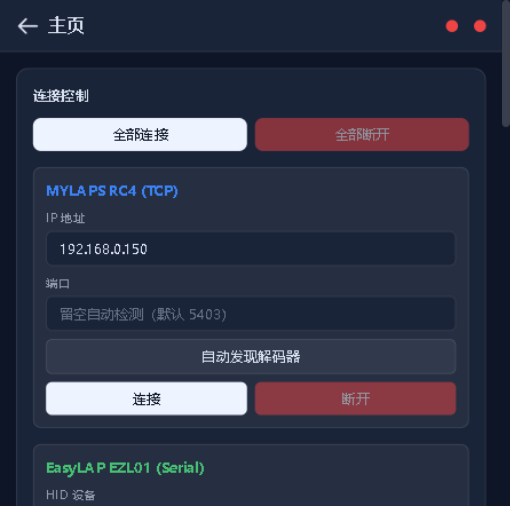

Decoder page: the MYLAPS RC4 and EasyLAP EZL01 panels, each with its own connect and disconnect controls — Decoder page: the two panels side by side, each with its own connection and statistics

From a single track to a full race day

Practice track
Club racing
Junior coaching
Event broadcast
Solo practice

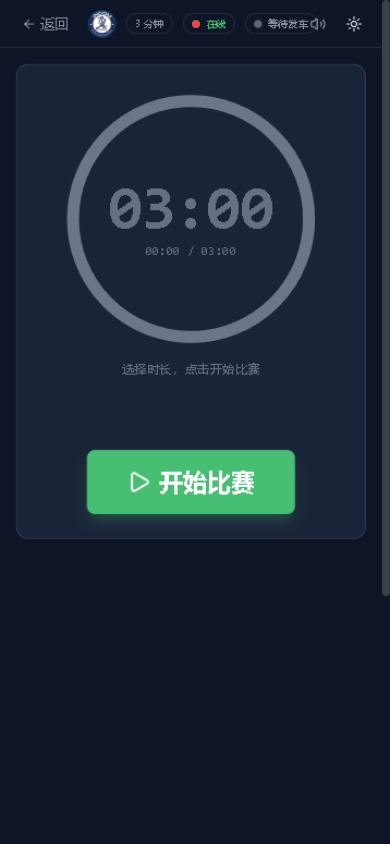

Quick race screen in a phone browser: a circular countdown, 3 / 5 / 8-minute duration choices and a start button.

Any device

On the same LAN, a phone works too

Any device on the same LAN can open a browser and get the same live data. iPhone, iPad, Android phone or tablet, with nothing to install. The timing host itself is the Windows machine the decoders are connected to.

Phones & tablets
Coaches and parents follow live positions and lap times on the spot.
TV boxes & camera positions
The same address feeds the big screen or a second computer.

A few honest words

10+ years of running a track, distilled into something fun

Free. All of it. Forever.

These are the features our track has used every single day for over a decade. No paywalls, no subscriptions, nothing locked — team practice, race nights, solo laps: install and run.

The timer ships first — the fun keeps coming

Chinese interface, quick to operate, no manual needed. New features land update after update, and the app upgrades itself. You just drive.

Open source is coming

Fun things should not be locked away. The code goes open source down the road — come poke it, tweak it, build with us.

Install it and go

Windows 10 / 11 (64-bit) · about 120 MB · the timing service starts automatically after install
No Node, Python or database to install

Download for Windows See the install steps
